Enjoy the ease of replacing your power tubes anytime you like with the very user friendly power tube bias section found on each SL/LD Preamp. If you like experimenting with different tube types, the bias section allows you to pop-in and bias a new set of tubes in just a few minutes.
3 Independent Channels, each channel is equipped with independent Gain, Master Volume and EQ controls:
CH-1 CLEAN channel produces a wide array of crystal clear yet complex clean sounds. When the channel’s Gain control is cranked up, a beautiful bluesy solo sound is possible. Turning the Gain down is more suitable for fingering.
CH-2 LEAD 1 – a dynamic overdrive reacts to your picking attack. Crank the gain high and there’s enough saturation for blues styles and old school hard rock. For a brutally heavy metal tone it also gives tons of definition and punch to speed picking and fast palm-muted rhythms. A BRIGHT switch adds glassy tone to your solos while the rhythm becomes more edgy and sharp.
CH-3 LEAD 2 – Drive channel – is the highest gain of the two LEAD channels – very dense, aggressive, heavy high-gain tone, so-called California sound. High-gain end is huge. Great for achieving warmest fattest sounds with high density. "Brother" Soldano SLO100 and Mesa Rectifier.

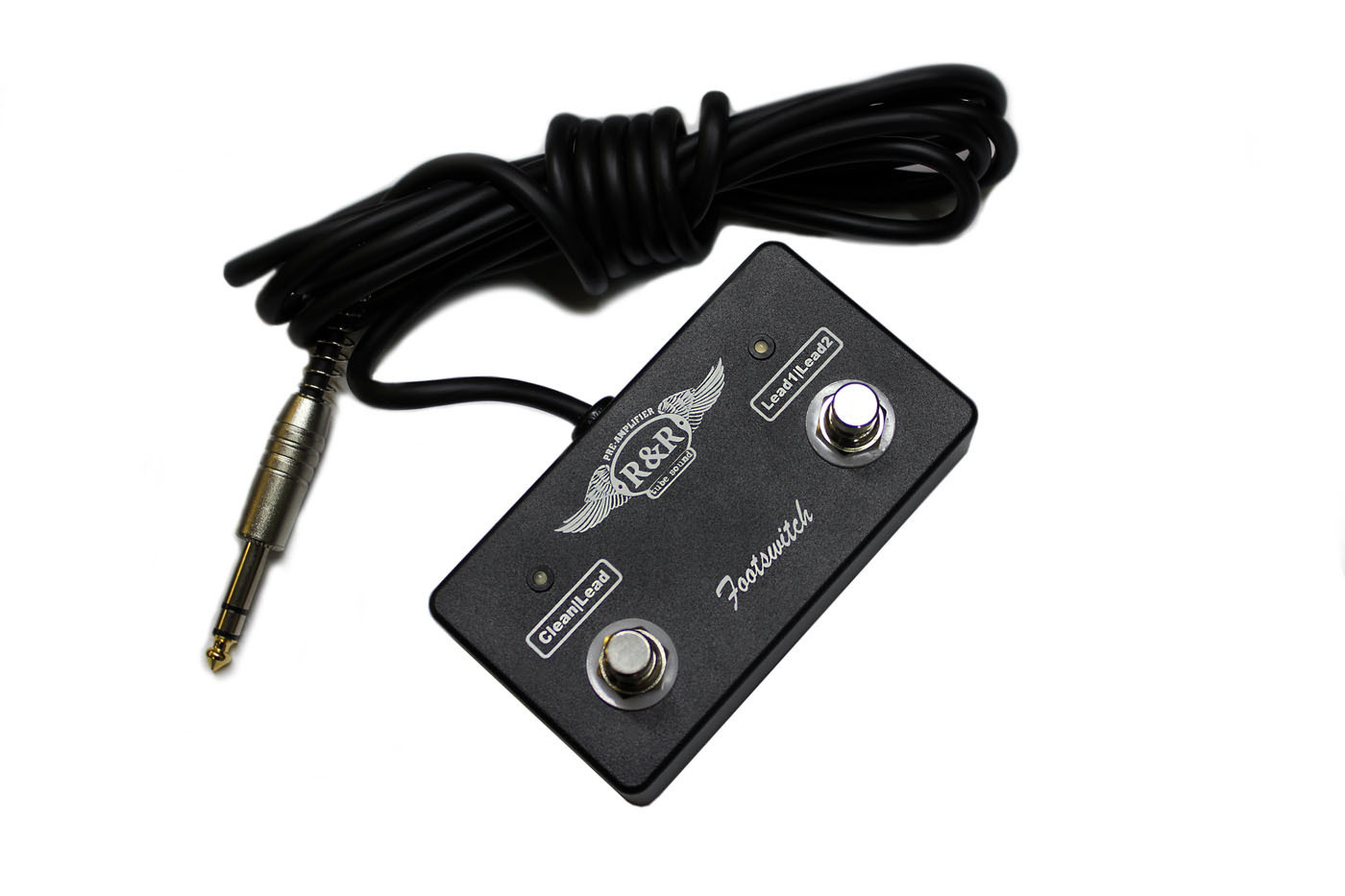

FX LOOP can be switched from series to parallel (SERIES / PARALLEL) with the switch on rear panel (FX ON / FX OFF) separately for each channel (CLEAN / LEAD). It also can be controlled by two-button Foot Switch, which is connected with pre-amp via FSW LOOP jack on rear panel.

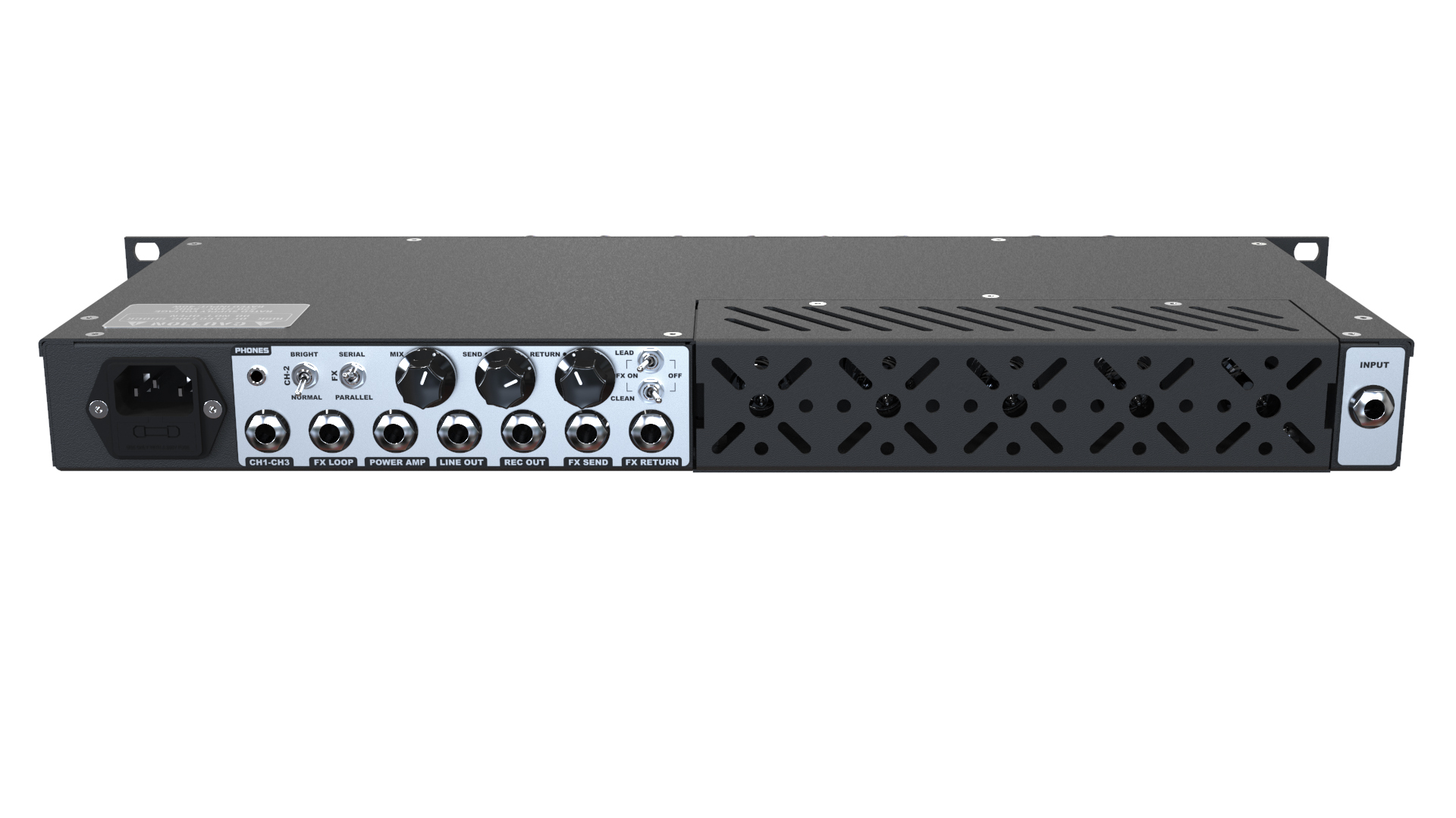

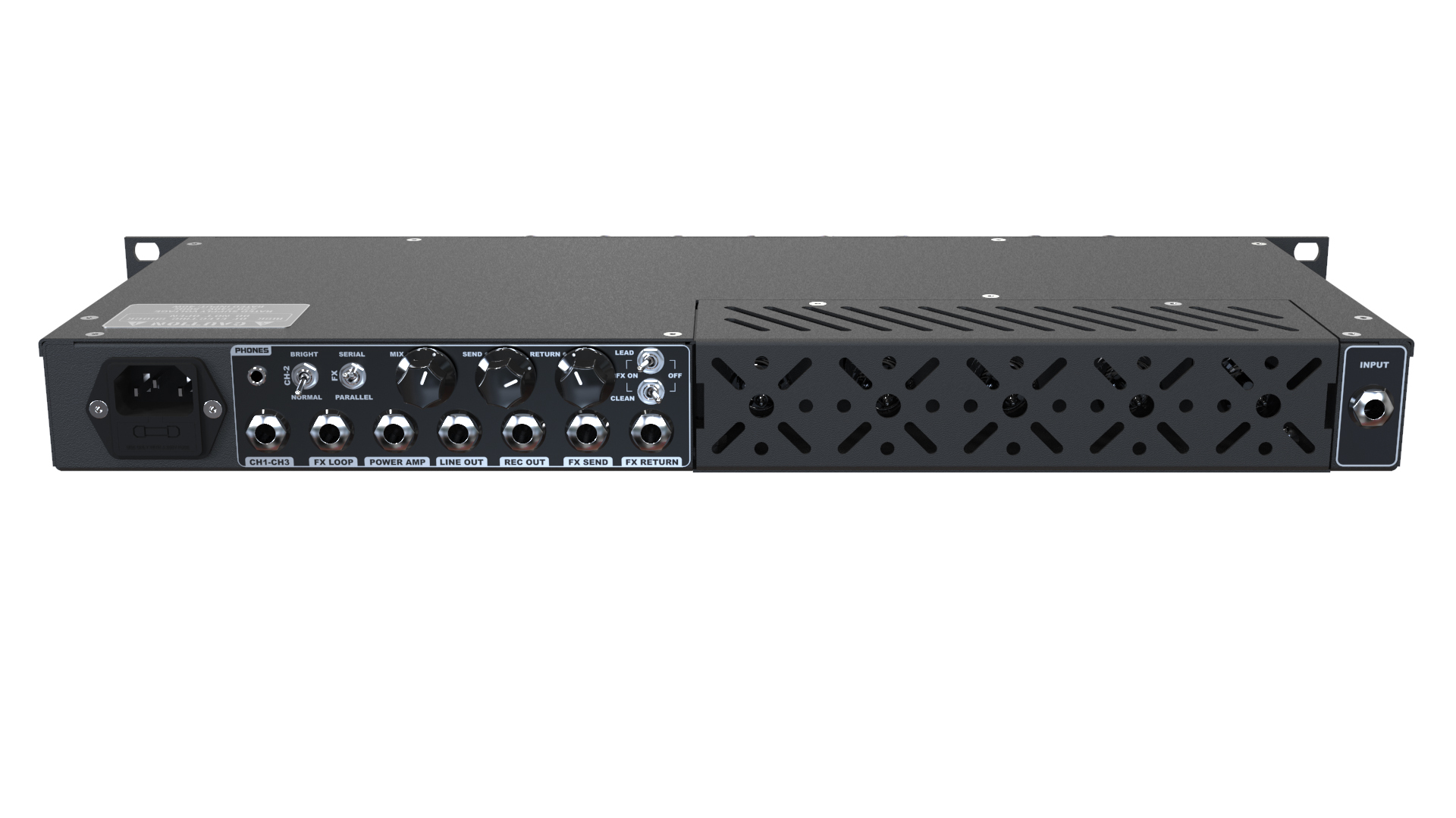

Instrument Input jack is located on the Rear panel for easier commutation in rack.
PHONES- specialized headphones output.
POWER AMP - specialized output for connecting with Power Amplifier Input (as a pre-amp).
LINE OUT - output for connecting the amplifier's instrument input, amplifier’s RETURN jack or Power Amplifier Input (as a pre-amp).
REC OUT - Mono Output to a recording console or a live Mixing Board.
COVER PLATE - removable cover to protect the vacuum tubes from mechanical damage.
